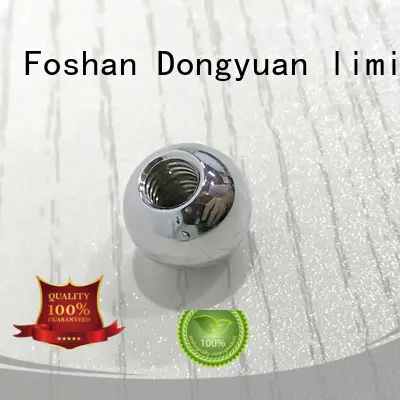

DONGYUAN m8 Metal solid balls processing supplier for square

Company Advantages
1. The design of DONGYUAN Metal solid balls processing involves many factors. They are the inspiration, drawing, color, design functionality, technical package, garment patterns and so on.
2. Made of quality insulation material, this product is less likely to affect by other live conductors which may lower its insulation level.
3. Heavy tasks are now done with the help of this product. It produces more work with little energy and also within a limited time.
4. People can set assured that this product only emitted little electromagnetic radiation, absolutely not affecting people's health.

Material	ss 201,304,316
size	14mm
Process	drilled holes, chorme plated , can plated or painted color
Hole size	6mm, any requirement, please contact us
Weight	About 60 gram
MOQ	1000 pieces
Color	Red, white, golden, black, blue,purple, rainbow color
Application	Bicycles, Motor, Machinery, Newton swinging the ball, Electric Tools, Sports Apparatus, Medical Equipment, Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.



Material	Feature	General Application
ss 304	Austenitic type, corrosion resistance, slightly magnetic, however annealing  can makes it non- magnetic	Bicycles, Newton swinging the ball , Machinery, Electric Tools, Sports , Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.
ss 316	non-magnetic, best  corrosion resistance  even when exposed to marine atmosphere and sulfuric acid
ss201	Austenite type, no magnetic, low prices, superior performance, Can be processing,  welding, drilling, hardness HRC 28 or less



Composition

Material	C	Si	Mn	P<=	S<=	Ni	Cr	Mo
ss 304	≤0.07	≤1.00	≤2.00	0.035	0.03	8~10	17~19	_
ss 316	≤0.08	≤1.00	≤2.00	0.035	0.03	10~14	16~18	2.0~3.0
ss201	0.15	≤1.00	≤5.50~7.5	0.06	0.03	3.05~5.50	16~18	_



Tolerance Level and Technical Requirements

Grade	Vdws(≤)	Sph(≤)	Ra(≤)	Vdwl(≤)	Tdn(≤)
10	0.25um	0.25um	0.025um	0.5um	*
16	0.4um	0.40um	0.032um	0.8um	*
20	0.5um	0.50um	0.04um	1um	*
28	0.7um	0.70um	0.05um	1.4um	*
40	1.0um	1.00um	0.08um	2um	*
60	1.5um	1.50um	0.10um	3um	*
100	2.5um	2.50um	0.125um	5um	±12.5um
200	5um	5um	0.2um	10um	±25um
500	13um	13um	*	25um	±50um
1000	25um	25um	*	50um	±125um

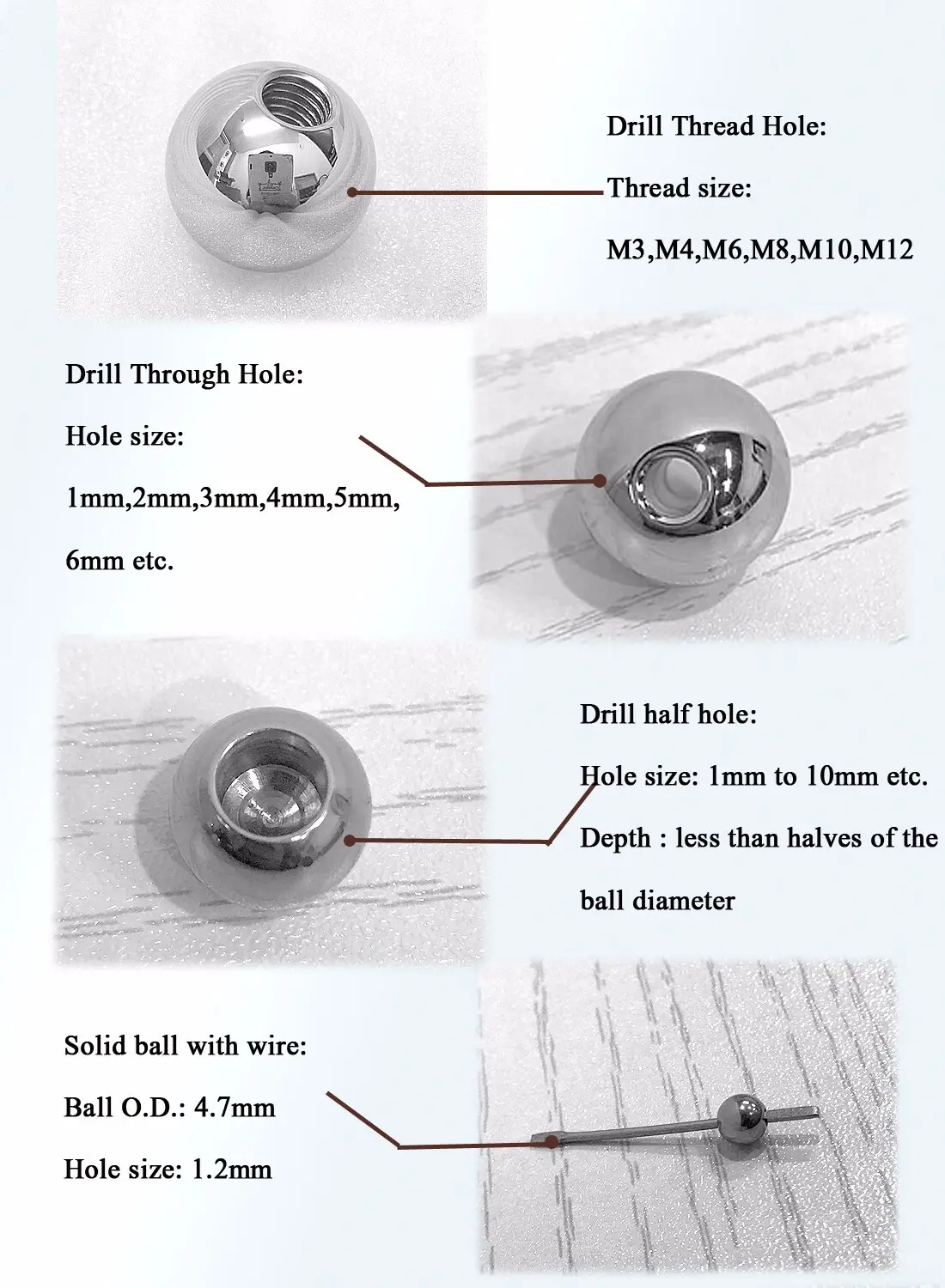

OTHER PROCESS:



Packing Details :

1:wrapped with anti-wear foam paper and plastic bags

2: packing with Exported Corrugated carton

3: Finally fixed with a wooden case outside requirements.



Shipping method:

Shipments for light parts are via DHL,TNT,UPS, or Fedex etc ,heavy weight and large size is Via Sea or Air shipment according your requirements.







Company Features
1. Foshan Dongyuan limited is world-famous for both excellence in manufacturing premium quality Metal solid balls processing and greatness in offering intimate service.
2. Different mechanisms are provided for fabricating different Metal solid balls processing.
3. We make efforts to protect our environment. We conserve water resources by adopting energy-efficient faucets and develop water recycle programs. In the process of manufacturing, we constantly pay emphasis on CO2 emissions, reject flows, recycling, energy use, and other environmental issues. Our aim is heading Total Productive Maintenance (TPM) production approach. We endeavor to upgrade the production procedures to no breakdowns, no small stops or slow running, no defects, and no accidents. We are persisting in the "customer-orientation" approach. We put ideas into action to offer comprehensive and reliable solutions that are flexible to address each client's needs.
