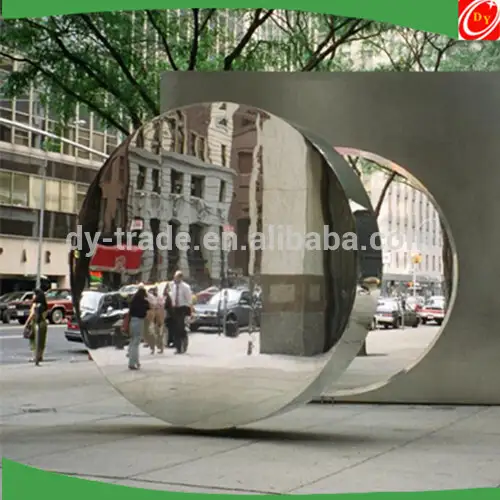

Custom Shape Metal Large Outdoor Sculpture

Custom Shape Metal Large Outdoor Sculpture

Custom Shape Metal Large Outdoor Sculpture

Custom Shape Metal Large Outdoor Sculpture





What to know?

Austenitic:
Austenitic steels have austenite as their primary phase (face centered cubic crystal). These are alloys containing chromium and nickel (sometimes manganese and nitrogen), structured around the Type 302 composition of iron, 18% chromium, and 8% nickel. Austenitic steels are not hardenable by heat treatment. The most familiar stainless steel is probably Type 304, sometimes called T304 or simply 304. Type 304 surgical stainless steel is an austenitic steel containing 18-20% chromium and 8-10% nickel.

Ferritic:
Ferritic steels have ferrite (body centered cubic crystal) as their main phase. These steels contain iron and chromium, based on the Type 430 composition of 17% chromium. Ferritic steel is less ductile than austenitic steel and is not hardenable by heat treatment.

Martensitic:
The characteristic orthorhombic martensite microstructure was first observed by German microscopist Adolf Martens around 1890. Martensitic steels are low carbon steels built around the Type 410 composition of iron, 12% chromium, and 0.12% carbon. They may be tempered and hardened. Martensite gives steel great hardness, but it also reduces its toughness and makes it brittle, so few steels are fully hardened.

There are also other grades of stainless steels, such as precipitation-hardened, duplex, and  cast stainless steels. Stainless steel can be produced in a variety of finishes and textures and can be tinted over a broad spectrum of colors.









Company Information



We are capable of providing stainless steel spheres/balls almost as per your specific requirements. Products include hollow stainless steel spheres (ranging from 6mm to 2500mm in diameter), available for delivery if we have it in stock or delivered within 15 days. Wall thickness of spheres varies from 0.4mm to 3mm. Shaped by water pressure, our products could be mirror polished without any seams noticeable on the surface; meanwhile, welding and then sandblasting spheres is a another way to produce mirror polished spheres also without detectable traces on the spheres. Having been offering services for our customers worldwide, a variety of products also fall under many categories of our products. Staidness steel spheres, hollow or solid, of all sizes are our major products, and brass and bronze balls come along. Hollow reflective stainless steel spheres of enormous sizes are amongst the top sales in our products. Perforated stainless steel spheres or sculptures of 304 or 316 are also our hot products. Not to mention we have done considerable amount of drilled stainless steel balls or spheres with holes of many sizes. Our products are of professional and advanced technology with cost-effective craftmanship and favorable delivery time.





FAQ



Do you customize?

--Yes, the majority of our business is either using our in-house designs, or further developing your own designs presented to us. We can modify by re-scaling, re-sizing, adding signage / script etc.



Can I choose a specific rust color or pattern?

--Each product has its own unique character and finish. The color variations are part of the intentional design and, being an organic process, it cannot be controlled.



What is the weight?

--It depends on the subject products. If it is a standard size sphere, then it would be easy for us to give you an estimate weight regardless of the error or deviation. If it is a customized product, all designs vary according to intricacy and negative/positive space, and if framing is necessary.



What is your delivery process?

-- Local deliveries are notified before dispatch to confirm a suitable delivery time slot.  Rural, interstate & international deliveries are dispatched using express or sea transportation as per our client’s request .



Is there any maintenance required?

-- 304 steel is enduring indoors and should be kept from water. 316 is the best steel on the market with overwhelming capability against water-erosion. Long term exposure to the elements and environment will cause changes and a continuation of the rusting process. If this is not desired, we recommend a small degree of maintenance.









Product Description

Table 1. Composition ranges for 316 grade of stainless steels.

Grade



C

Mn

Si

P

S

Cr

Mo

Ni

N

316

Min

-

-

-

0

-

16.0

2.00

10.0

-

Max

0.08

2.0

0.75

0.045

0.03

18.0

3.00

14.0

0.10

316L

Min

-

-

-

-

-

16.0

2.00

10.0

-

Max

0.03

2.0

0.75

0.045

0.03

18.0

3.00

14.0

0.10

316H

Min

0.04

0.04

0

-

-

16.0

2.00

10.0

-

max

0.10

0.10

0.75

0.045

0.03

18.0

3.00

14.0

-





Table 2. Mechanical properties of 316 grade stainless steels.

Grade

Tensile Str
(MPa) min

Yield Str
0.2% Proof
(MPa) min

Elong
(% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

316

515

205

40

95

217

316L

485

170

40

95

217

316H

515

205

40

95

217





Table 4. Grade specifications for 316 grade stainless steels.

Grade

UNS
No

Old British

Euronorm

Swedish
SS

Japanese
JIS

BS

En

No

Name

316

S31600

316S31

58H, 58J

1.4401

X5CrNiMo17-12-2

2347

SUS 316

316L

S31603

316S11

-

1.4404

X2CrNiMo17-12-2

2348

SUS 316L

316H

S31609

316S51

-

-

-

-





Corrosion Resistance

Excellent in a range of atmospheric environments and many corrosive media - generally more resistant than 304. Subject to pitting and crevice corrosion in warm chloride environments, and to stress corrosion cracking above about 60°C. Considered resistant to potable water with up to about 1000mg/L chlorides at ambient temperatures, reducing to about 500mg/L at 60°C.

316 is usually regarded as the standard “marine grade stainless steel”, but it is not resistant to warm sea water. In many marine environments 316 does exhibit surface corrosion, usually visible as brown staining. This is particularly associated with crevices and rough surface finish.

Heat Resistance

Good oxidation resistance in intermittent service to 870°C and in continuous service to 925°C. Continuous use of 316 in the 425-860°C range is not recommended if subsequent aqueous corrosion resistance is important. Grade 316L is more resistant to carbide precipitation and can be used in the above temperature range. Grade 316H has higher strength at elevated temperatures and is sometimes used for structural and pressure-containing applications at temperatures above about 500°C.

Heat Treatment

Solution Treatment (Annealing) - Heat to 1010-1120°C and cool rapidly. These grades cannot be hardened by thermal treatment.




Packaging & Shipping



Packing

Stainless steel sculpture packing:

Outside packing:

2CM standard wooden crate with metal junction and nails;

Enough wood chunks as support for the inner products;

Anti-shaking;

Three strong strapping packing belts around the wooden crate ;



Inner Packing:

Thick plastic or soft foam to avoid scratches on the surface of the ball;

Shockproof foam to protect each carved garden ball for decoration.



Robust corrugated carton along with plastic soft shockproof foam to avoid scratches on the surface of the ball.



Different sizes are available.





Authenticity

Certificate



This product is indispensable now and will continue to be. It keeps serving industries around the world, bring solutions in various applications. With the assistance of skilled professionals, we are able to provide finest quality assortment of Stainless Steel Sculpture. The product is safe to use. It is specially treated to eliminate any harmful substances to make it safe for people's health. With the assistance of skilled professionals, we are able to provide finest quality assortment of Stainless Steel Sculpture.
Our firm Foshan Dongyuan limited, was established in the year 2010 as the eminent manufacturer, exporter and supplier of metal Products. Our experts carry out the manufacturing procedure in accordance with the industry laid parameters using latest technology and thus, bring forth outcomes as per customers’ expectations. Under our product gamut, we have introduced Spheres & Sculptures, to be used for distinguished industrial needs, available under cost-effective budget. As imparted with smooth finish and dimensional stability, these products are asked prominently in the market.In the process, we have developed our workplace over a wide area equipped with latest range of machinery & tools, requited to carry out the manufacturing tasks in an efficient way. Workforce we have is hard working and committed, having in-depth industry knowledge and are putting in their endless efforts towards meeting our customers’ expectations. The complete production procedure is performed under the strict surveillance of our in-house quality controllers, resulting in flawless range of products. Supported by our customer-centric approach and ethical working norms, we are exporting our offered range all over the globe, gaining huge appreciation & acknowledgement.
