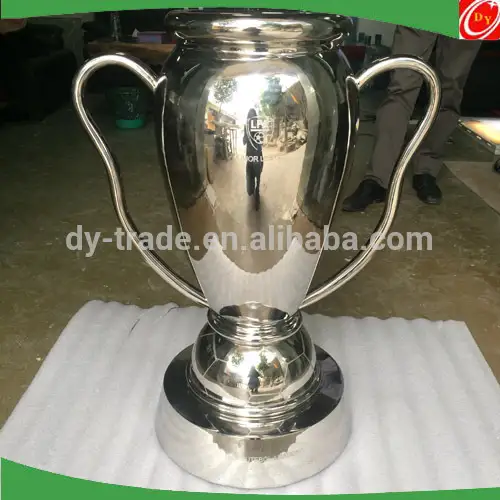

Big Cup Shiny Stainless Steel Trophies

Big Cup Shiny Stainless Steel Trophies

Big Cup Shiny Stainless Steel Trophies

Big Cup Shiny Stainless Steel Trophies



What to know?

Austenitic:
Austenitic steels have austenite as their primary phase (face centered cubic crystal). These are alloys containing chromium and nickel (sometimes manganese and nitrogen), structured around the Type 302 composition of iron, 18% chromium, and 8% nickel. Austenitic steels are not hardenable by heat treatment. The most familiar stainless steel is probably Type 304, sometimes called T304 or simply 304. Type 304 surgical stainless steel is an austenitic steel containing 18-20% chromium and 8-10% nickel.

Ferritic:
Ferritic steels have ferrite (body centered cubic crystal) as their main phase. These steels contain iron and chromium, based on the Type 430 composition of 17% chromium. Ferritic steel is less ductile than austenitic steel and is not hardenable by heat treatment.

Martensitic:
The characteristic orthorhombic martensite microstructure was first observed by German microscopist Adolf Martens around 1890. Martensitic steels are low carbon steels built around the Type 410 composition of iron, 12% chromium, and 0.12% carbon. They may be tempered and hardened. Martensite gives steel great hardness, but it also reduces its toughness and makes it brittle, so few steels are fully hardened.

There are also other grades of stainless steels, such as precipitation-hardened, duplex, and  cast stainless steels. Stainless steel can be produced in a variety of finishes and textures and can be tinted over a broad spectrum of colors.





Company Information

Foshan Dongyuan Trading Co., Ltd. is a company dealing with a variety of products, whose major products are stainless steel and related accessories such as stainless steel valves, sculptures of all kinds of shapes as well as spheres covering many sizes. Having been in this trade for 4 years, we have succeeded in satisfying our clients and customers throughout the world for our products are of excellence and superiority. Customers’ needs are always our priority. Please rest assured that once we start meeting your requirements on any possible products we could come up with, no worries will incur about the quality, prices and all sales services. We are accountable and obligated for our customers’ comfort in terms of product quality, service and after-sales.



We supply the full range of stainless steel spheres from 6mm - 2000mm diameter.













Packaging & Shipping

PACKAGES

Outside packing:

2CM standard wooden crate with metal junction and nails;

Enough wood chunks as support for the inner products;

Anti-shaking;

Three strong strapping packing belts around the wooden crate ;



Inside Packing:

Thick plastic or soft foam to avoid scratches on the surface of the ball;

Shockproof foam to protect each carved garden ball for decoration.



Robust corrugated carton along with plastic soft shockproof foam to avoid scratches on the surface of the ball.



Different sizes are available.



SHIPPING

Modes of  Shippment

Ground, Ship and Air

Ground:

Land or "ground" shipping can be by train or by truck. Ground transport is typically more affordable than air, but more expensive than sea especially in developing countries like India, where inland infrastructure is not efficient.

Shipment of cargo by trucks, directly from the shipper's place to the destination, is known as a door to door shipment and more formally as multimodal transport. Trucks and trains make deliveries to sea and air ports where cargo is moved in bulk.

Ship:

Much shipping is done aboard by actual ships. On rivers and canals, barges are often used to carry bulk cargo.

Air:

Cargo was transported by air in specialized cargo aircraft and in the luggage compartments of passenger aircraft. Air freight is typically the fastest mode for long distance freight transport, but also the most expensive.







Product Description

Contrary to its name, stainless steel, metal, is valued for its anti-corrosion properties rather than its resistance to staining. It is an alloy composed primarily of iron—but when combined with other elements, it can achieve properties desirable for a range of applications. Chromium is the defining ingredient that makes stainless steel what it is, making up a minimum of 10.5 percent of total composition. Other common alloy ingredients include nickel, titanium, aluminum, copper, nitrogen, phosphorous and selenium.



304 widely used in the market. Used in iatrical instrument, chemical industry, avigation. Plastic hardware: scent bottles, sprayers, valves, nail polish, switches, washing machine, fridges, air condition, medicinal materials, automotive fittings, bearing, nursing bottle and so on. A representative of Austenitic. Nonmagnetic, but magnetic after rolling. Magnetism can be rid of, HRC ≤ 26. Antirust and anticorrosive.  304HC is softer and can be processed more easily than 304.



316 used in iatrical instruments, chemical industry, avigation, scent bottle, sprayer, valve, nail polish, mobile phone fittings. Austenitic. The best steel ball in the steel ball area, HRC ≤ 26. Better than 304. 316L is softer and more shinning than 316. Can be used in personal decoration.



Table 4. Grade specifications for 316 grade stainless steels.

Grade

UNS
No

Old British

Euronorm

Swedish
SS

Japanese
JIS

BS

En

No

Name

316

S31600

316S31

58H, 58J

1.4401

X5CrNiMo17-12-2

2347

SUS 316

316L

S31603

316S11

-

1.4404

X2CrNiMo17-12-2

2348

SUS 316L

316H

S31609

316S51

-

-

-

-





Table 5. Possible alternative grades to 316 stainless steel.

Grade

Why it might be chosen instead of 316

316Ti

Better resistance to temperatures of around 600-900C is needed.

316N

Higher strength than standard 316.

317L

Higher resistance to chlorides than 316L, but with similar resistance to stress corrosion cracking.

904L

Much higher resistance to chlorides at elevated temperatures, with good formability

2205

Much higher resistance to chlorides at elevated temperatures, and higher strength than 316





Composition ranges for 304 grade stainless steel

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

304

min.

max.

-

0.08

-

2.0

-

0.75

-

0.045

-

0.030

18.0

20.0

-

8.0

10.5

-

0.10





Mechanical properties of 304 grade stainless steel

Grade

Tensile Strength (MPa) min

Yield Strength 0.2% Proof (MPa) min

Elongation (% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

304

515

205

40

92

201









Fabrication

Step 1: Modeling

By utilizing blueprints or 3D drawings provided by our clients, we initiate the whole design by first using foam, fiber glass or clay as mold for the following procedures, depending on the size, shape, materials and so on.





Step 2: Engineering and Preparing Stainless Steel Sheet

High quality stainless steel is applied in the construction procedure, where we usually use standard AISI/SS 304 Stainless Steel due to its comparatively high cost-effectiveness and practicability among 201 and Marine Grade 316 Stainless Steel Sheet, or specific materials mandated by our clients, say fiber glass or 316. Quality stainless steel is crucial to the whole project,and thus we will choose suitable materials with caution.

After the preparatory process, we will cut the chosen materials into pieces and then bend and shape them according to the mold with the help of certain tools and appliances, such as hammers and plasma cutter. During the process, every pieces of them will posses the rough shape and curve as per the presented design.



Step 3: Rebar within the Sculpture

It is  critical to ensure the security of the design. Therefore, rebar or armature is going to made accordingly to fit into the sculpture or to be placed outside the sculpture so that it could within wind, snow, rain etc. It is usually made of steel.



Step 4: Further Enhancing and Polishing

This is the procedure where we are going to attain the exact replica of the design. Since the pieces of stainless steel sheet have been already entitled with the approximate outlook, they are going to be further re-modified, enhanced and honed to perfection.By using several tools and materials, the surface of the sculpture is mirror-polished to flawlessness.



Step 5: Packing

Specifically-tailored wooden box will keep the sculpture safe and intact during transport.



Foshan Dongyuan limited has strict tests for quality until it meet up with standards. We also offer customized/personalized service that accommodates to every customer demand. Foshan Dongyuan limited makes it easy for you to find stainless steel balls manufacturer that you can trust. We also offer customized/personalized service that accommodates to every customer demand.
As Pioneers in the manufacture of high precision mirror finished Stainless Steel products, Foshan Dongyuan limited is far ahead than many others in the development of this unique technology. With our experience of more than four decades in this field, we have perfected the Stainless Steel products making technology and are Leaders in this particular industry. We have designed a thorough Quality Control Program which stretches from raw materials to the finished product. Quality being an indispensable area in the production process, we at Foshan Dongyuan limited have applied strict set of standards in our checks to each and every single Ball we manufacture. We are keenly aware of the fast changing scenario and have dedicated all our energy to the development of a high level of technological strength that allows us to meet the needs of the times.With facilities equipped with modern equipment and indigenously made machinery, we are forever prepared to meet the demands for standard and custom-made Balls. No wonder, Foshan Dongyuan limited Stainless Steel Balls are so widely accepted all over.
