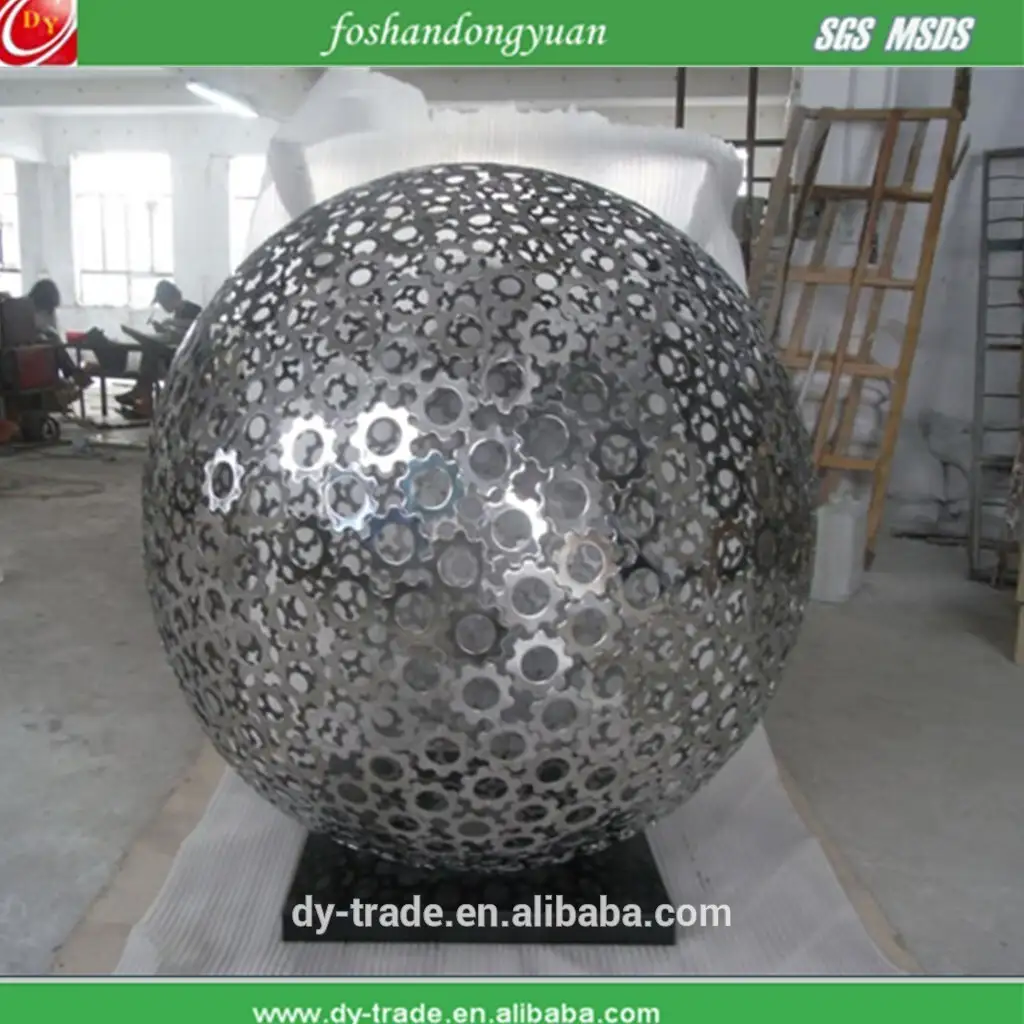

Bespoke 1000mm large stainless steel hollow spheres sculpture

Bespoke 1000mm large stainless steel hollow spheres sculpture

Bespoke 1000mm large stainless steel hollow spheres sculpture

  1000mm large stainless steel hollow spheres sculpture




FAQ



Q: Do you have a stainless steel ball of 500mm?



A: As for those standard sizes, we always have stock.





Q: Do you have a 1000mm ball ?  How long can I get it?



A: This ball falls into a category of big size sphere, so it takes some time in manufacturing and delivery.But rest assured you could get it as soon as possible.





Q: Can I have a stainless sphere not of regular sizes?



A: Sizes not of standard are available bur it costs a fortune. Hence, it is not recommended by us. With modest money, we could always provide you with sizes sim lar without too many differences and the quality remains unchanged.




Product Description

Grade 304 is the standard "18/8" stainless; it is the most versatile and most widely used stainless steel, available in a wider range of products, forms and finishes than any other. It has excellent forming and welding characteristics. The balanced austenitic structure of Grade 304 enables it to be severely deep drawn without intermediate annealing, which has made this grade dominant in the manufacture of drawn stainless parts such as sinks, hollow-ware and saucepans. For these applications it is common to use special "304DDQ" (Deep Drawing Quality) variants. Grade 304 is readily brake or roll formed into a variety of components for applications in the industrial, architectural, and transportation fields. Grade 304 also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.





Physical capability of stainless steel balls

CAPABILTY

MODEL

201

302

304

316

Tensile strength

100,000 - 180,000 psi

100,000-180,000 psi

100,000 - 180,000 psi

90,000 psi

Yield strength

50,000 - 150,000 psi

50,000-150,000 psi

50,000 - 150,000 psi

45,000 psi

Tensibility

55-60%

55-60%

55 - 60%

35%

Modulus of Elasticity

29,000,000 psi

29,000,000 psi

29,000,000 psi

28,000,000 psi

Density

280lbs/cubic inch

286lbs/cubic inch

286 lbs/cubic inch

290lbs/cubic inch



Chymic component of 304 stainless steel balls

CS

MODEL

201

302

304

316

C

0.15% max

0.15% max

0.08% max

0.08% max

Si

1.00% max

1.00% max

1.00% max

1.00% max

Mn

5.50-7.50%

2.00% max

2.00% max

2.00% max

P

0.045% max

0.045% max

0.045% max

0.045% max

S

0.03% max

0.03% max

0.030% max

0.03% max

Cr

16.00-18.00%

17.00-19.00%

17.00- 19.00%

16.00-18.00%

Molybdenum

-----

-----

-----

2.00-3.00%

Ni

3.50-5.50%

8.00-10.00%

8.00 --10.00%

10.00-14.00%

N

-----

-----

-----

0.10% max

Nitrogen

0.25% max

-----

-----

-----








TABLE1- TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES
 UTS kSI.(MPa)0.2%YS ksi.(MPa)Elongation% in 2"(50.8mm)

Rockwell Hardness
Type 30495(566)42(290)55B84
Type 304L95(566)42(275)55B82



TABLE3-LOW TEMPERATURE MECHANICAL PROPERTIES
ConditionTemperature ℉(℃)UTS kSI.(MPa)0.2%YS ksi.(MPa)Elongation% in 2"(50.8mm)
Annealed_320(_196))235(1620)56(386)40
_80(_62)161(1110)50(345)57
_40(_40)145(1000)48(331)60
32(0)122(841)40(296)65
70(21)85(586)35(241)55



Physical properties of 304 grade stainless steel in the annealed condition

Grade



Elastic Modulus (GPa)

Mean Coefficient of Thermal Expansion (μm/m/°C)

Thermal Conductivity (W/m.K)

Specific Heat 0-100°C (J/kg.K)

Electrical Resistivity (nΩ.m)

0-100°C

0-315°C

0-538°C

at 100°C

at 500°C

304/L/H

8000

193

17.2

17.8

18.4

16.2

21.5

500

720



Grade specifications for 304 grade stainless steel

Grade

UNS No

Old British

Euronorm

Swedish SS

Japanese JIS

BS

En

No

Name

304

S30400

304S31

58E

1.4301

X5CrNi18-10

2332

SUS 304





Dongyuan metal balls can develop and produce various kinds of similar stainless steel balls and related products according to customer requirements. Dongyuan stainless steel products are in conformation with the guidelines defined by the market. Foshan Dongyuan limited provide OEM and ODM services to worldwide partners. Dongyuan stainless steel products are in conformation with the guidelines defined by the market.
Established in the year 2010, we, Foshan Dongyuan limited, are one of the leading Manufacturer, Trader and Supplier of a wide variety of Spheres & Sculptures. Headquartered in guangdong/foshan/, our organization has carved a niche for itself in the market as a leading provider of stainless steel fittings as well as servicing for these products. We are engaged in offering our clients with a vast and exciting range of products to suit their multiple requirements. We specialize in delivering high-quality products to our clients within the stipulated time-frame. Our credibility as a client-friendly organization has been gained due to the budget-friendly rates at which we provide our products and services. The superior co-ordination of our team members coupled with the highly sought after guidance of our industrial experts has helped us greatly in being an organization of repute. Our products are delivered to clients at reasonable market rates.
