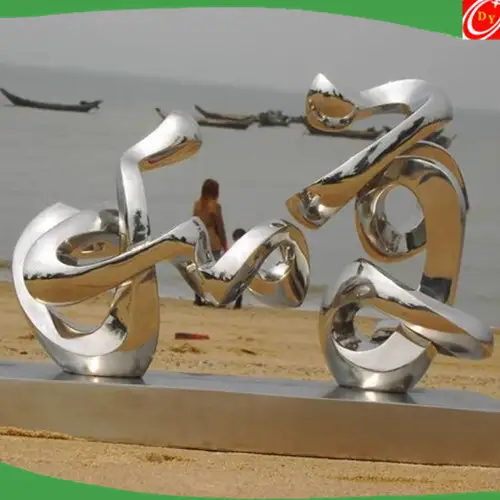

Abstract Sculpture Made of Stainless Steel
Abstract Sculpture Made of Stainless Steel
Stainless steel sculptures of A-list quality; preferable service; optimized efficency&discreet consideration for our customers.
products will be at your request; cost-effective; inclusive of every detail you could possibly come up with.
Brand Name: DY
Material: Stainless Steel or other
MOQ: Dependable on the sizes
Price: Detemined by the order quantity
Today steel quotes and certifications commonly make reference to both SAE and AISI, not always with precise differentiation. For example, in the alloy/grade field, a cert might say "4140", "AISI 4140", or "SAE 4140", and in most light-industrial applications any of the above is accepted as adequate, and considered equivalent, for the job at hand, as long as the specific specification called out by the designer (for example, "4140 bar per ASTM-A108" or "4140 bar per AMS 6349") is certified to on the certificate. The alloy number is simply a general classifier, whereas it is the specification itself that narrows down the steel to a very specific standard.
Composition ranges for 304 grade stainless steel
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
Mechanical properties of 304 grade stainless steel
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
304 | 515 | 205 | 40 | 92 | 201 |
Physical properties of 304 grade stainless steel in the annealed condition
Grade
| Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | ||||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
