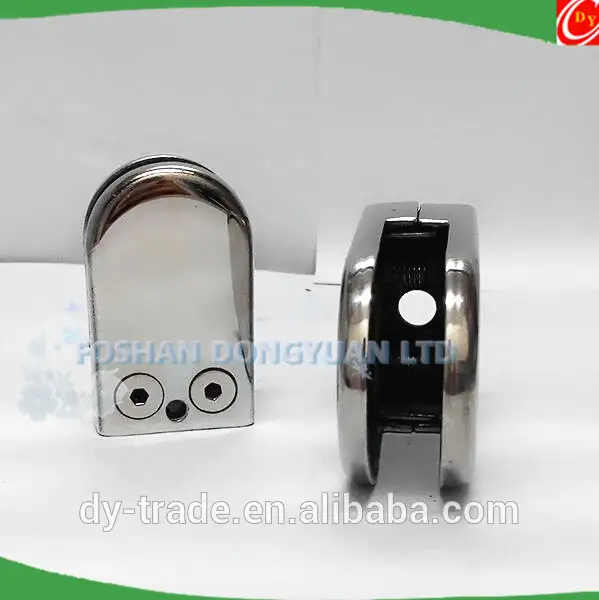

201,304 stainless steel glass panel clamp,steel glass railing clamp clip
♦ stainless steel glass panel clamp Specification
1.Material: 201,304,316 stainless steel
2. Size(length*width*height):
43mm*25mm*45mm; 33mm*20mm*53mm; 43mm*24mm* 52mm; 43mm*26mm*65mm; 54mm*30mm*60mm
3. Thickness:1.8 mm
4.Feature: austenitic, corrosion resistance, slightly magnetic
5. Tube/glass:for 25.4/38.1/42.4 /50.8 round tube, square tube,8-15mm glass
6. Surface treatment: polished,brushed
7. Application: the stainless steel decorative glass clamp is used for stainless steel handrail fencing, stair decoration
Chemical composition of stainless steel glass clamp:
Material | Feature |
AISI 304 | austenitic, corrosion resistance, slightly magnetic, however annealing, can makes it non - magnetic |
AISI 316 | non - magnetic, good corrosion resistance even when exposed to marine atmosphere and sulfuric acid. |
AISI 201 | acid and alkali resistance , high density , polish no bubbles , pinhole-free, best for decoration and industry . |
Chemical Composition of Material | Material Composition | 201 | 304 | 316 |
C | ≤0.15 | ≤0.08 | ≤0.08 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | 5.5-7.5 | ≤2.00 | ≤2.00 | |
P | ≤0.06 | ≤0.045 | ≤0.035 | |
S | ≤0.03 | ≤0.030 | ≤0.030 | |
Cr | 16-18 | 18-20 | 16-18 | |
Ni | 3.05-5.05 | 8-10 | 10-14 | |
Mo |
|
| 2.0-3.0 | |
Mechanical Property | Material Item | 201 | 304 | 316 |
Tensile Strength | ≥535 | ≥520 | ≥520 | |
Yield Strength | ≥245 | ≥205 | ≥205 | |
Extension | ≥30% | ≥35% | ≥35% | |
Hardness (HV) | <105 | <90 | <90 | |
|
|
|
|
|
1. 10 years manufacturer of staircase and railings, One Stop Building Materials Supplier.
2. OEM services are available, welcome to visit our factory or show room Before you place an order.
3. Free design, we could offer you solution as your budget.
4. One stop service, besides design, production, we could also arrange shipping for you.
5. All products are low maintenance and have two years warranty.
FoShan DongYuan Trading Co.,LTD. Is a emerging Enterprise. The business scope includes importing & exporting business, samples processing, components assemble and compensation trade as well as processing with supplied and imported materials. In addition, it not only acts as the import and export agent of various kinds of commodities and technology but also undertakes counter trade and entrepot trade.
The main products contain balls (including stainess steel ball,stainless steel hollow ball/sphere . grinding balls.Garden gazing ball),Balustrades & Handrails Components(including Handrail Brackets.Weldable Elbows.Flange&Cover.Glass clamp).furniture (including decoration furniture ,home ware products), etc. The above mentioned products are mainly exported to countries and areas like America, European Union, Japan, East and South Asia, Middle East ,South America and Africa etc.
1. wrapped with anti-wear foam paper
2. packing with Exported Corrugated carton
3. Finally fixed with a wooden box or iron packing outside.
