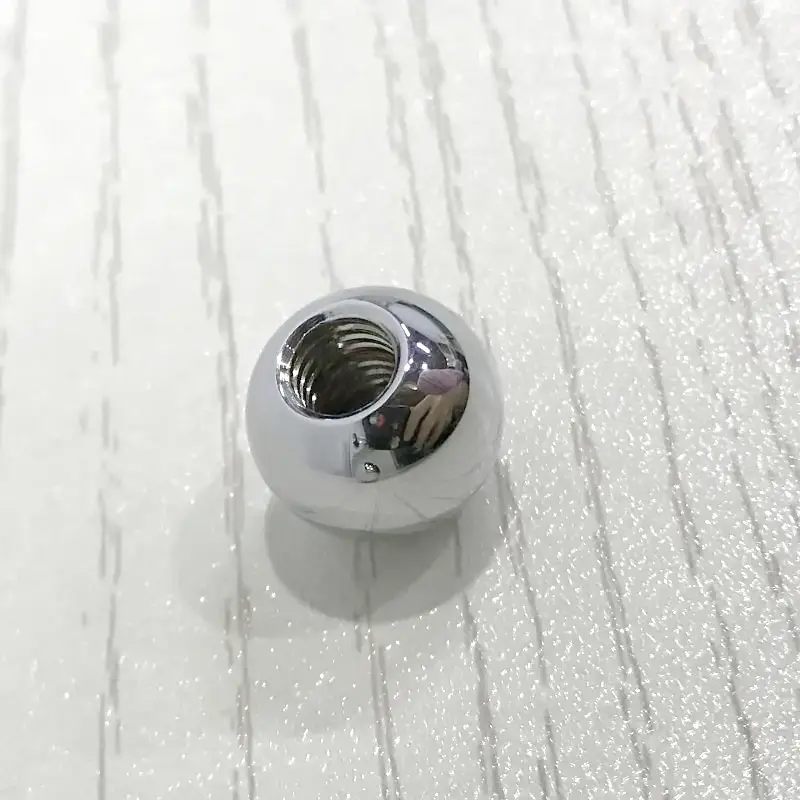

14mm Threaded Stainless Steel Solid Beads/Balls

14mm Threaded Stainless Steel Solid Beads/Balls

14mm Threaded Stainless Steel Solid Beads/Balls

Material
AISI/SUS/SS 304/316 Stainless Steel Polished Solid Ball
Size
14mm
Thickness
Solid
Ports
FoShan / ShenZhen / Guangzhou
Payment
T/T , Western Union , L/C
More detail
Contact us
Surface
Mirror Polished
Packing
EPE Wrap, Wooden Case/Cardboard Box
Packing Size :
Depending on quantity.
Lead Time
At least 15-20 days or depending on quantity


Material

ss 201,304,316

size

14mm

Process

drilled holes, chorme plated , can plated or painted color

Hole size

6mm, any requirement, please contact us

Weight

About 60 gram



MOQ

1000 pieces



Color

Red, white, golden, black, blue,purple, rainbow color

Application

Bicycles, Motor, Machinery, Newton swinging the ball, Electric Tools, Sports Apparatus, Medical Equipment, Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.



Material

Feature

General Application



ss 304

Austenitic type, corrosion resistance,
slightly magnetic, however annealing
can makes it non- magnetic



Bicycles, Newton swinging the ball , Machinery, Electric Tools, Sports , Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.



ss 316

non-magnetic, best  corrosion resistance
even when exposed to marine atmosphere
and sulfuric acid



ss201

Austenite type, no magnetic, low prices,
superior performance, Can be processing,
welding, drilling, hardness HRC 28 or less



Composition

Material

C

Si

Mn

P<=

S<=

Ni

Cr

Mo



ss 304

≤0.07

≤1.00

≤2.00

0.035

0.03

8~10

17~19

_



ss 316

≤0.08

≤1.00

≤2.00

0.035

0.03

10~14

16~18

2.0~3.0



ss201

0.15

≤1.00

≤5.50~7.5

0.06

0.03

3.05~5.50

16~18

_



Tolerance Level and Technical Requirements

Grade

Vdws(≤)

Sph(≤)

Ra(≤)

Vdwl(≤)

Tdn(≤)

10

0.25um

0.25um

0.025um

0.5um

*

16

0.4um

0.40um

0.032um

0.8um

*

20

0.5um

0.50um

0.04um

1um

*

28

0.7um

0.70um

0.05um

1.4um

*

40

1.0um

1.00um

0.08um

2um

*

60

1.5um

1.50um

0.10um

3um

*

100

2.5um

2.50um

0.125um

5um

±12.5um

200

5um

5um

0.2um

10um

±25um

500

13um

13um

*

25um

±50um

1000

25um

25um

*

50um

±125um



OTHER PROCESS:



Packing Details :

1:wrapped with anti-wear foam paper and plastic bags


2: packing with Exported Corrugated carton

3: Finally fixed with a wooden case outside requirements.



Shipping method:

Shipments for light parts are via DHL,TNT,UPS, or Fedex etc ,heavy weight and large size is Via Sea or Air shipment according your requirements.
