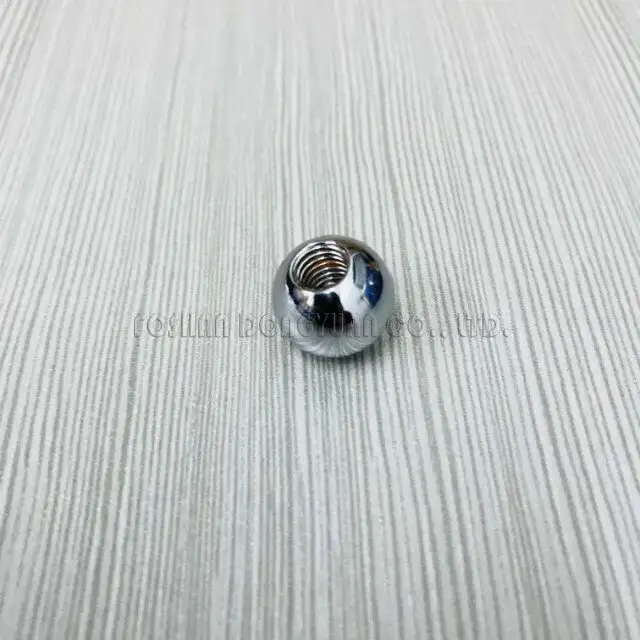

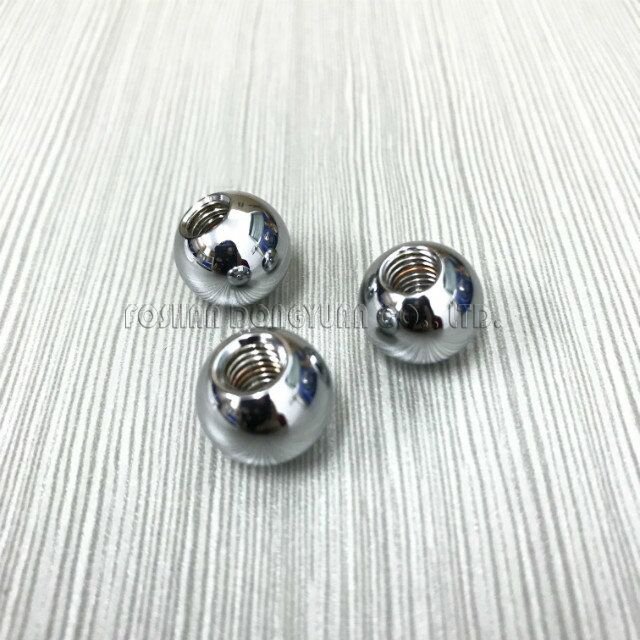

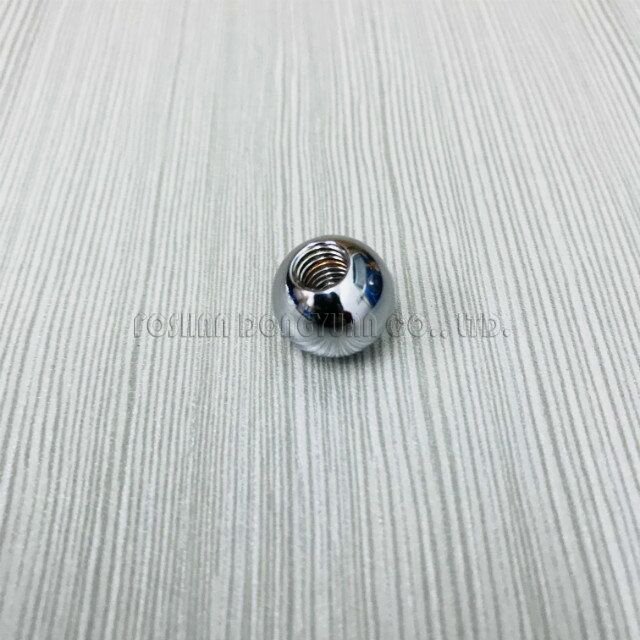

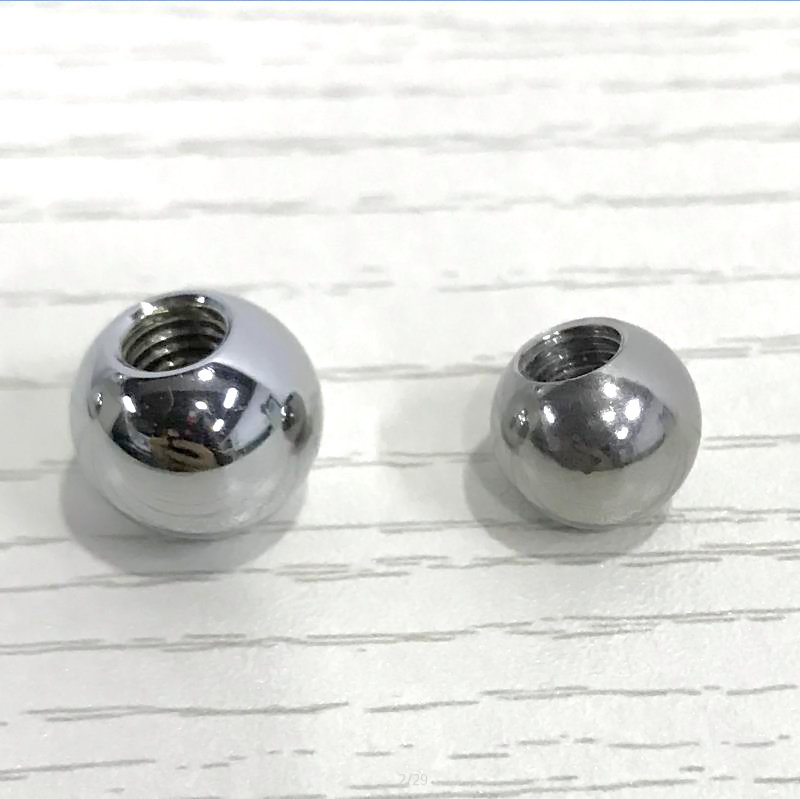

12mm Threaded Stainless Steel Solid Beads/Balls

12mm Threaded Stainless Steel Solid Beads/Balls

12mm Threaded Stainless Steel Solid Beads/Balls

Material
AISI/SUS/SS 304/316 Stainless Steel Polished Solid Ball
Size
12mm
Thickness
Solid
Ports
FoShan / ShenZhen / Guangzhou
Payment
T/T , Western Union , L/C
More detail
Contact us
Surface
Mirror Polished
Packing
EPE Wrap, Wooden Case/Cardboard Box
Packing Size :
Depending on quantity.
Lead Time
At least 15-20 days or depending on quantity



Material

ss 201,304,316

size

12mm

Process

drilled holes, chorme plated , can plated or painted color

Thread Hole size

Metric 2,M 2.5, M 3,M 4,M 6,M 8,1/4-20 Thread

Weight

About 60 gram



MOQ

1000 pieces



Color

Red, white, golden, black, blue,purple, rainbow color

Hole depth

1mm to 20mm etc.

Application

Bicycles, Motor, Machinery, Newton swinging the ball, Electric Tools, Sports Apparatus, Medical Equipment, Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.





Material

Feature

General Application



ss 304

Austenitic type, corrosion resistance,
slightly magnetic, however annealing
can makes it non- magnetic



Bicycles, Newton swinging the ball , Machinery, Electric Tools, Sports , Perfume Bottles, Sprayers, Nail Polish, Body Jewelry, Mobile Phone Panels, Toys, Hand Massage,Ball Knobs,Display ,Carft Purpose and etc.



ss 316

non-magnetic, best  corrosion resistance
even when exposed to marine atmosphere
and sulfuric acid



ss201

Austenite type, no magnetic, low prices,
superior performance, Can be processing,
welding, drilling, hardness HRC 28 or less



Composition

Material

C

Si

Mn

P<=

S<=

Ni

Cr

Mo



ss 304

≤0.07

≤1.00

≤2.00

0.035

0.03

8~10

17~19

_



ss 316

≤0.08

≤1.00

≤2.00

0.035

0.03

10~14

16~18

2.0~3.0



ss201

0.15

≤1.00

≤5.50~7.5

0.06

0.03

3.05~5.50

16~18

_



Thread Holes for Different Balls

      Metric

 BallSize



M2



M2.5



M3



M4



M6



M8



M10



1/4-20 Thread

6mm

*

*

*






8mm

*

*

*

*





9mm

*

*

*

*





10mm

*

*

*

*





12mm

*

*

*

*

*




12.7mm

*

*

*

*

*




14mm

*

*

*

*

*




16mm

*

*

*

*

*




17mm

*

*

*

*

*

*


*

18mm

*

*

*

*

*

*


*

19mm

*

*

*

*

*

*


*

20mm

*

*

*
