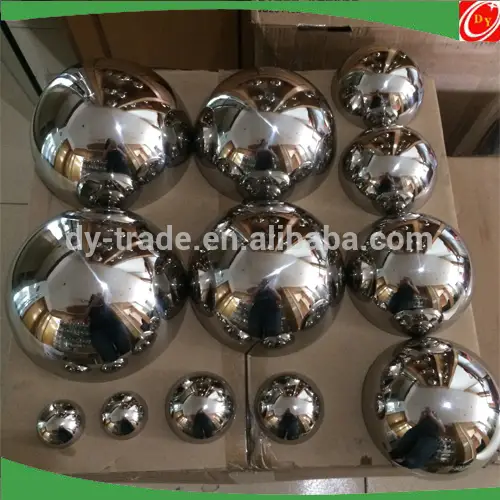

Various Size Bath Bomb Mold Steel Half Ball
Why choose us?
Our company is a professional supplier.we have many years of export experience of all kinds of stainless steel balls and we enjoy good reputation in South America,Mid East,Africa,etc.Our products haveacquired the CE certification
Our Advantage
Powerful Strength
Our factory is one of 24-hour service, contact us anytime you like.
Quality Assurance
the specialist in selling stainless steel product- the Land of sculpture In China, we have a strong supply capacity to satisfy your requirements.
Factory Outlet
Factory direct sales not noly could ensure the reasonable price, but also guarantee the quality and delivery time of the stainless steel products.
Professional
Grand A material, exquisite craft, carvers are artists with decades of experience, guarantee the process.
Gold Medal After-sales
All risks for your orders. Once your goods was broken, we will send you a new one freely.
Excellent Reputation
Over the years , we have won the praise of many consumers relying on our superior products and services
What kind of spheres we have?(similar products)
1.carbon steel balls
2.grinding steel balls
3.hollow stainless steel balls
4.large garden decoration balls
5.brass hemisphere
6.color gazing ball
7.precision steel ball
8.mirror polish ball
9.brushed stainless steel hollow stainless
Composition ranges for 304 grade stainless steel
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
Mechanical properties of 304 grade stainless steel
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
304 | 515 | 205 | 40 | 92 | 201 |
Physical properties of 304 grade stainless steel in the annealed condition
Grade |
| Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade specifications for 304 grade stainless steel
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| TABLE1- TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES | ||||||||
| UTS kSI.(MPa) | 0.2%YS ksi.(MPa) | Elongation% in 2"(50.8mm) | Rockwell Hardness | |||||
| Type 304 | 95(566) | 42(290) | 55 | B84 | ||||
| Type 304L | 95(566) | 42(275) | 55 | B82 | ||||
| TABLE1- TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES | ||||||||
| UTS kSI.(MPa) | 0.2%YS ksi.(MPa) | Elongation% in 2"(50.8mm) | Rockwell Hardness | |||||
| Type 304 | 95(566) | 42(290) | 55 | B84 | ||||
| Type 304L | 95(566) | 42(275) | 55 | B82 | ||||
Dual Certification
It is common for 304 and 304L to be stocked in "Dual Certified" form, particularly in plate and pipe. These items have chemical and mechanical properties complying with both 304 and 304L specifications. Such dual certified product does not meet 304H specifications and may be unacceptable for high temperature applications.
Applications
Typical applications include:
Food processing equipment, particularly in beer brewing, milk processing & wine making.
Kitchen benches, sinks, troughs, equipment and appliances
Architectural panelling, railings & trim
Chemical containers, including for transport
Heat Exchangers
Woven or welded screens for mining, quarrying & water filtration
Threaded fasteners
Springs
Types 304 and 304L exhibit excellent resistance to corrosiveenvironments such as the chemical, textile and petroleum industries.Type 304 and 304L are found suitable in the food and dairy industries as well as excelling in rural and industrial atmospheric exposure.By reducing the carbon content in Type 304L, welding operations willnot cause carbide precipitation that can lead to intergranular corrosion. Themaximum temperature to which Type 304 can be exposed continuously without appreciable scaling is about 1650 °F (899 °C).For intermittent cyclic exposure, the maximum exposure temperature
is about 1500 °F (816 °C).Type 304 is non-hardenable by heat treatment.Annealing: Heat to 1900 – 2050 °F (1038 – 1121 °C), then cool rapidly.Thin strip sections may be air cooled, but heavy sections should be waterquenched to minimize exposure in the carbide precipitation region.Stress Relief Annealing: Cold worked parts should be stress relieved at750 °F (399 °C) for 1/2 to 2 hours.High hardness and strength are achieved through cold working. In the annealed condition, Types 304 and 304L are very ductile and can be cold worked easily by roll forming, deep drawing, bending, and other common fabricating methods. Since the material work hardens rapidly, in-process annealing may be necessary to restore ductility and to lower hardness.Types 304 and 304L can be readily formed and drawn. The higher nickel versions of Type 304 are well suited to severe forming applications involving multi-draw operations and forming of complex shapes. This is largely due to its combination of lower strength and lower work hardening rate. As with all austenitic stainless steels,annealing or stress-relieving can be performed following fabrication.The austenitic class of stainless steels is generally considered to be weldable by the common fusion and resistance techniques. Special consideration is required to avoid weld “hot cracking” by assuring formation of ferrite in the weld deposit. Type 304 and 304L are generally considered to be the most common alloys of this stainless class. When a weld filler is needed, AWS E/ER 308, 308L or 347 are most often specified. Types 304 and 304L Stainless Steels are well known in reference literature and more information can be obtained in the following ways:
1. ANSI/AWS A5.9, A5.22 and A5.4 (Stainless Steel Welding Electrode
Specifications).
2. “Welding of Stainless Steels and Other Joining Methods,” SSINA,
(www.ssina.com).
3. ANSI/AWS B2.1.009:2002 (GTAW 300’s @ 0.50 – 0.14 in.).
4. ANSI/AWS B2.1-8-024:2001 (GTAW 300’s @ 0.125 – 1.5 in.).
5. ANSI/AWS B2.1-8-013:2002 (SMAW 300’s @ 0.050 – 0.14 in.).
6. ANSI/AWS B2.1-8-023:94 (SMAW 300’s @ 0.125 – 1.5 in.).
7. ANSI/AWS B2.1.005:2002 (GMAW 300’s @ 0.050 – 0.14 in.).
8. "High Frequency Welding of Stainless Steel Tubes" by H.N. Udall and
R.K. Nichols.
9. ANSI/AWS D1.6/D1.6M:2007 (Structural Welding Code – Stainless
Steel).
PACKAGES
Outside packing:
2CM standard wooden crate with metal junction and nails;
Enough wood chunks as support for the inner products;
Anti-shaking;
Three strong strapping packing belts around the wooden crate ;
Inside Packing:
Thick plastic or soft foam to avoid scratches on the surface of the ball;
Shockproof foam to protect each carved garden ball for decoration.
Robust corrugated carton along with plastic soft shockproof foam to avoid scratches on the surface of the ball.
Different sizes are available.
SHIPPING
Modes of Shippment
Ground, Ship and Air
Ground:
Land or "ground" shipping can be by train or by truck. Ground transport is typically more affordable than air, but more expensive than sea especially in developing countries like India, where inland infrastructure is not efficient.
Shipment of cargo by trucks, directly from the shipper's place to the destination, is known as a door to door shipment and more formally as multimodal transport. Trucks and trains make deliveries to sea and air ports where cargo is moved in bulk.
Ship:
Much shipping is done aboard by actual ships. On rivers and canals, barges are often used to carry bulk cargo.
Air:
Cargo was transported by air in specialized cargo aircraft and in the luggage compartments of passenger aircraft. Air freight is typically the fastest mode for long distance freight transport, but also the most expensive.
