Spheres & Sculptures

Home  > new category  > Spheres & Sculptures  >

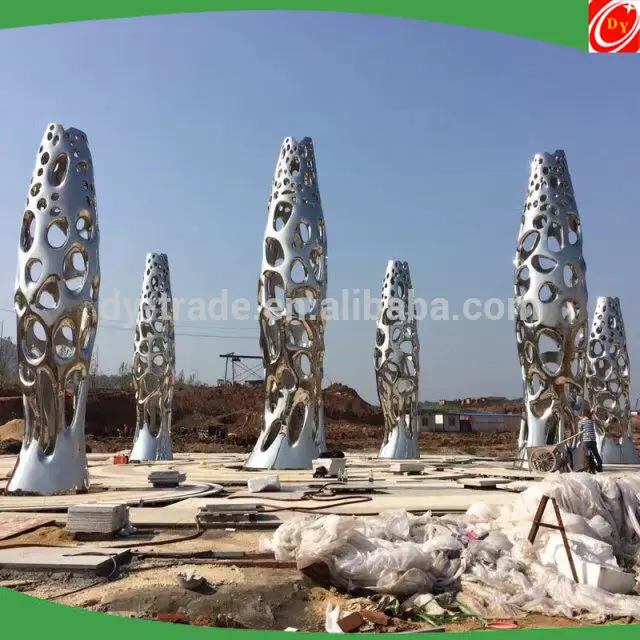

Outdoor Public Commercial Art Sculptures

Outdoor Public Commercial Art Sculptures

Outdoor Public Commercial Art Sculptures

Outdoor Public Commercial Art Sculptures

SPECIFICATION

ITEM NAME: Outdoor Public Commercial Art Sculptures

SIZE: 1000mm and above

THICKNESS: 1.5-2.0mm

FINISH: Mirror Polished, Brushed/Matt, Sandblasted, Painted and Plated etc.

MATERIAL: Antirust AISI304/316

Applied Technology: Cutting, Welding and Polishing

Tools: welding guns and polishing machines

Package: Customized wooden case, EPE and cushion on the bottom (depending on means of transport).

Transport: Air, Sea, Truck Transport, Courier Express etc.


Why Choose Us?



Why choose us?



Our company is a professional supplier.we have many years of export experience of all kinds of stainless steel balls and we enjoy good reputation in South America,Mid East,Africa,etc.Our products haveacquired the CE certification





Our Advantage



Powerful Strength

Our factory is one of 24-hour service, contact us anytime you like.



Quality Assurance

 the specialist in selling stainless steel productthe Land of sculpture In China, we have a strong supply capacity to satisfy your requirements.



Factory Outlet

Factory direct sales not noly could ensure the reasonable price, but also guarantee the quality and delivery time of the stainless steel products.



Professional

Grand A material, exquisite craft, carvers are artists with decades of experience, guarantee the process.



Gold Medal After-sales

All risks for your orders. Once your goods was broken, we will send you a new one freely.



Excellent Reputation

Over the years , we have won the praise of many consumers relying on our superior products and services







Product Description
stainless steel  hollow/solid ball sphere
GradeC       Wt. %Si   Wt. %Mn  Wt. %P   Wt. %S     Wt. %Cr     Wt. %Mo     Wt. %Ni     Wt. %N    Wt. %
AISI3040.081.0220.0450.03Max17-29/8--10/
AISI3160.081.0220.0450.03Max18Max2.0-3.010--140.1Max



Mechanical properties of 304 grade stainless steel

Grade

Tensile Strength (MPa) min

Yield Strength 0.2% Proof (MPa) min

Elongation (% in 50mm) min

Hardness

Rockwell B (HR B) max

Brinell (HB) max

304

515

205

40

92

201




TABLE1- TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES
 UTS kSI.(MPa)0.2%YS ksi.(MPa)Elongation% in 2"(50.8mm)Rockwell Hardness
Type 30495(566)42(290)55B84
Type 304L95(566)42(275)55B82



TABLE1- TYPICAL ROOM TEMPERATURE MECHANICAL PROPERTIES
 UTS kSI.(MPa)0.2%YS ksi.(MPa)Elongation% in 2"(50.8mm)

Rockwell Hardness
Type 30495(566)42(290)55B84
Type 304L95(566)42(275)55B82



Dual Certification

It is common for 304 and 304L to be stocked in "Dual Certified" form, particularly in plate and pipe. These items have chemical and mechanical properties complying with both 304 and 304L specifications. Such dual certified product does not meet 304H specifications and may be unacceptable for high temperature applications.

Applications

Typical applications include:

  Food processing equipment, particularly in beer brewing, milk processing & wine making.

    Kitchen benches, sinks, troughs, equipment and appliances

    Architectural panelling, railings & trim

    Chemical containers, including for transport

    Heat Exchangers

    Woven or welded screens for mining, quarrying & water filtration

    Threaded fasteners

    Springs



Types 304 and 304L exhibit excellent resistance to corrosiveenvironments such as the chemical, textile and petroleum industries.Type 304 and 304L are found suitable in the food and dairy industries as well as excelling in rural and industrial atmospheric exposure.By reducing the carbon content in Type 304L, welding operations willnot cause carbide precipitation that can lead to intergranular corrosion. Themaximum temperature  to which Type 304 can be exposed continuously without appreciable scaling is about 1650 °F (899 °C).For intermittent cyclic exposure, the maximum exposure temperature

is about 1500 °F (816 °C).Type 304 is non-hardenable by heat treatment.Annealing: Heat to 1900 – 2050 °F (1038 – 1121 °C), then cool rapidly.Thin strip sections may be air cooled, but heavy sections should be waterquenched to minimize exposure in the carbide precipitation region.Stress Relief Annealing: Cold worked parts should be stress relieved at750 °F (399 °C) for 1/2 to 2 hours.High hardness and strength  are achieved through cold working. In the annealed condition, Types 304 and 304L are very ductile and can be cold worked easily by roll forming, deep drawing, bending, and other common fabricating methods. Since the material work hardens rapidly, in-process annealing may be necessary to restore ductility and to lower hardness.Types 304 and 304L can be readily formed and drawn. The higher nickel versions of  Type 304 are well suited to severe forming applications involving multi-draw operations and forming of complex shapes. This is largely due to its combination of lower strength and lower work hardening rate.  As with all austenitic stainless steels,annealing or stress-relieving can be performed following fabrication.The austenitic class of stainless steels is generally considered to be weldable by the common fusion and resistance techniques. Special consideration is required to avoid weld “hot cracking” by assuring formation of ferrite in the weld deposit. Type 304 and 304L are generally considered to be the most common alloys of this stainless class. When a weld filler is needed, AWS E/ER 308, 308L or 347 are most often specified. Types 304 and 304L Stainless Steels are well known in reference literature and more information can be obtained in the following ways:

1. ANSI/AWS A5.9, A5.22 and A5.4 (Stainless Steel Welding Electrode

Specifications).

2. “Welding of Stainless Steels and Other Joining Methods,” SSINA,

(www.ssina.com).

3. ANSI/AWS B2.1.009:2002 (GTAW 300’s @ 0.50 – 0.14 in.).

4. ANSI/AWS B2.1-8-024:2001 (GTAW 300’s @ 0.125 – 1.5 in.).

5. ANSI/AWS B2.1-8-013:2002 (SMAW 300’s @ 0.050 – 0.14 in.).

6. ANSI/AWS B2.1-8-023:94 (SMAW 300’s @ 0.125 – 1.5 in.).

7. ANSI/AWS B2.1.005:2002 (GMAW 300’s @ 0.050 – 0.14 in.).

8. "High Frequency Welding of Stainless Steel Tubes" by H.N. Udall and

R.K. Nichols.

9. ANSI/AWS D1.6/D1.6M:2007 (Structural Welding Code – Stainless

Steel).



Packaging & Shipping

PACKAGES



Outside Packing:

Thick and standard wooden case with metal junction and nails. Pallet on the bottom.



Inside Packing:

Shake&Shock Proof.

Thick plastic or soft shockproof foam to avoid scratches on the surface of the product;

Cushioning tire on the bottom to prevent the item moving or tumbling or leaving dents on the product in case of rough transport.







For FCL-It will be assembled and then cut for the sake of international transport. But for 2200mm, it will be disassembled and provided with minimum protection due to the size of the standard containers.





SHIPPING

Modes of  Shipment

Ground, Ship and Air



Ground:

Land or "ground" shipping can be by train or by truck. Ground transport is typically more affordable than air, but more expensive than sea especially in developing countries like India, where inland infrastructure is not the most effective way.

Shipment of cargo by trucks, directly from the shipper's place to the destination, is known as a door to door shipment and more formally as multimodal transport. Trucks and trains make deliveries to sea and air ports where cargo is moved in bulk.





Ship:

Much shipping is done aboard by actual ships. On rivers and canals, barges are often used to carry bulk cargo.





Air:

Cargo was transported by air in specialized cargo aircraft and in the luggage compartments of passenger aircraft. Air freight is typically the fastest mode for long distance freight transport, but also the most expensive.








People can use it to make machines, electronic goods, vehicles, houses, small components and parts, or use it in other applications. Our products can meet customers’ different kinds of requirements. Our customers all praise its high purity. They use it in their manufacturing or construction industries to maximize the value of the product. Our products can meet customers’ different kinds of requirements.
Established in the year 2010, we Foshan Dongyuan limited are a prominent firm that is engaged in Manufacturer a wide range of Spheres & Sculptures, etc. Located in guangdong/foshan/, we are a Sole Proprietorship firm and manufacture the offered products as per the set industry norms. Our valued clients can avail these products from us at reasonable rates. Under the headship of our mentor , we have gained a remarkable and strong position in the market.
