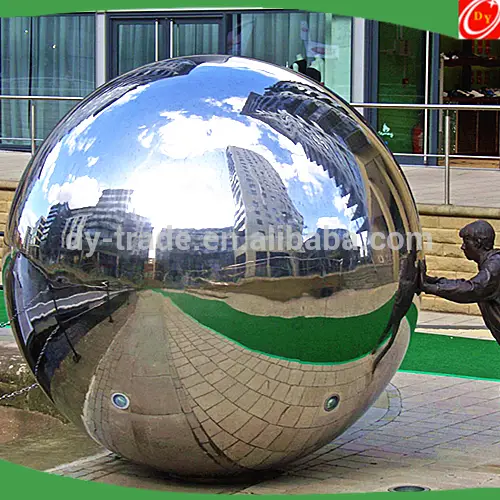

Large Decorative Outdoor Mirror Stainless Steel Sphere

Large Decorative Outdoor Mirror Stainless Steel Sphere

Large Decorative Outdoor Mirror Stainless Steel Sphere

Overview
Quick Details
Grade:
300 Series
Application:
Decoration
Certification:
ISO
Hardness:
<=26
Place of Origin:
Guangdong, China
Brand Name:
DY
Model Number:
DY-Stainless Steel Ball
MATERIAL:
STAINLESS STEEL
COLOR:
SILVER
APPLIED TECHNIQUE:
WELDING AND POLISHING
MAGNETISIM:
NONE
BUOYANCY:
CONSIDERABLE
THICKNESS:
2.0mm
Supply Ability
Supply Ability:
50 Piece/Pieces per Month

Large Decorative Outdoor Mirror Stainless Steel Sphere

SPECIFICATION

ITEM NAME: Large Decorative Outdoor Mirror Stainless Steel Sphere

SIZE: 120CM, 130CM, 140CM, 150CM, 160CM, 170CM, 180CM, 190CM, 200CM/1200MM TO 2000MM

THICKNESS: 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm

FINISH: Shiny Mirror Polished, Brushed/Matt, Sandblasted, Painted and Plated etc.

MATERIAL: Antirust AISI304/316/201

Applied Technology: Cutting, Welding and Polishing

Tools: welding guns and polishing machines

Package: Customized wooden case, EPE & cushion on the bottom (depending on means of transport). Pallet is included for large and heavy items.

Use:

1.    Indoor/Outdoor Decoration for garden, school, park, hotel, shopping mall, store, tourism attraction;

2.    Handrail Fittings for construction projects;

3.    Lampshades/Lamp Covers;

4.    Floating Steel Ball.



Application: Outdoor and indoor decoration; body-building device; bath-bomb shell; food processing; tableware; lamp cover.

Finish:

1. Mirror gazing polished;

2. Matt;

3. Sandblasted;

4. Rolled polished;

5. Raw surface;

6. Colored.

Feature:

1.    Rolling Chrome Finish

2.    Standard Polished

3.    Matt Finish

4.    Drilled-Hole Polished

5.    Threaded-Hole Polished

6.    Flat Black Painted

7.    Color-Painted/Plated







Product Description


Type 304 Stainless Steel is a variation of the base 18-8 grade, with a higher chromium and lower carbon content. The lower carbon content minimizes chromium carbide precipitation due to welding and its susceptibility to intergranular corrosion. In some instances Type 304 can be used in the "as-welded" condition. Type 304L is an extra low-carbon variation of Type 304 with a 0.03% maximum carbon content that eliminates carbide precipitation due to welding. As a result, this alloy can be used in the "as welded" condition, even in severe corrosive conditions. In many cases it eliminates the necessity of annealing weldments except for applications specifying stress relief. Type 304L has slightly lower mechanical properties than Type 304. High strength, excellent corrosion resistance and excellent formability make Types 304 and 304L Stainless Steels useful for many applications. Typical uses include architectural moldings and trim, kitchen equipment, as well as chemical, textile, paper, pharmaceutical and chemical industry processing equipment.For severely corrosive environments or when welding is required, Type 304L is preferred because of its greater immunity to intergranular corrosion.





Type 316 is an austenitic chromiumnickel stainless steel containing molybdenum. This addition increases general corrosion resistance, improves resistance to pitting from chloride ion solutions, and provides increased strength at elevated temperatures. Properties are similar to those of Type 304 except that this alloy is somewhat stronger at elevated temperatures. Corrosion resistance is improved, particularly against sulfuric, hydrochloric, acetic, formic and tartaric acids; acid sulfates and alkaline chlorides.Type 316L is an extra-low carbon version of Type 316 that minimizes harmful carbide precipitation due to welding. Typical uses include exhaust manifolds, furnace parts, heat exchangers, jet engine parts, pharmaceutical and photographic equipment, valve and pump trim, chemical equipment, digesters, tanks, evaporators, pulp, paper and textile processing equipment, parts exposed to marine atmospheres and tubing. Type 316L is used extensively for weldments where its immunity to carbide precipitation due to welding assures optimum corrosion resistance.









Chymic component of 304 stainless steel balls

CS

MODEL

201

302

304

316

C

0.15% max

0.15% max

0.08% max

0.08% max

Si

1.00% max

1.00% max

1.00% max

1.00% max

Mn

5.50-7.50%

2.00% max

2.00% max

2.00% max

P

0.045% max

0.045% max

0.045% max

0.045% max

S

0.03% max

0.03% max

0.030% max

0.03% max

Cr

16.00-18.00%

17.00-19.00%

17.00- 19.00%

16.00-18.00%

Molybdenum

-----

-----

-----

2.00-3.00%

Ni

3.50-5.50%

8.00-10.00%

8.00 --10.00%

10.00-14.00%

N

-----

-----

-----

0.10% max

Nitrogen

0.25% max

-----

-----

-----





Physical capability of stainless steel balls

CAPABILTY

MODEL

201

302

304

316

Tensile strength

100,000 - 180,000 psi

100,000-180,000 psi

100,000 - 180,000 psi

90,000 psi

Yield strength

50,000 - 150,000 psi

50,000-150,000 psi

50,000 - 150,000 psi

45,000 psi

Tensibility

55-60%

55-60%

55 - 60%

35%

Modulus of Elasticity

29,000,000 psi

29,000,000 psi

29,000,000 psi

28,000,000 psi

Density

280lbs/cubic inch

286lbs/cubic inch

286 lbs/cubic inch

290lbs/cubic inch


















































































Packaging & Shipping

PACKAGES



Outside Packing:

Thick and standard wooden case with metal junction and nails. Pallet on the bottom.



Inside Packing:

Shake&Shock Proof.

Thick plastic or soft shockproof foam to avoid scratches on the surface of the product;

Cushioning tire on the bottom to prevent the item moving or tumbling or leaving dents on the product in case of rough transport.







SHIPPING

Modes of  Shipment

Ground, Ship and Air












The product meets customer's expectation and now is rather popular in the industry and has a broad market prospect. The size of small-sized stainless steel ball is 6mm-30mm. Thanks to its many advantages, it is certain that the product will have a bright market application in the future. The size of small-sized stainless steel ball is 6mm-30mm.
As Pioneers in the manufacture of high precision mirror finished Stainless Steel products, Foshan Dongyuan limited is far ahead than many others in the development of this unique technology. With our experience of more than four decades in this field, we have perfected the Stainless Steel products making technology and are Leaders in this particular industry. We have designed a thorough Quality Control Program which stretches from raw materials to the finished product. Quality being an indispensable area in the production process, we at Foshan Dongyuan limited have applied strict set of standards in our checks to each and every single Ball we manufacture. We are keenly aware of the fast changing scenario and have dedicated all our energy to the development of a high level of technological strength that allows us to meet the needs of the times.With facilities equipped with modern equipment and indigenously made machinery, we are forever prepared to meet the demands for standard and custom-made Balls. No wonder, Foshan Dongyuan limited Stainless Steel Balls are so widely accepted all over.
