Better Touch Better Business

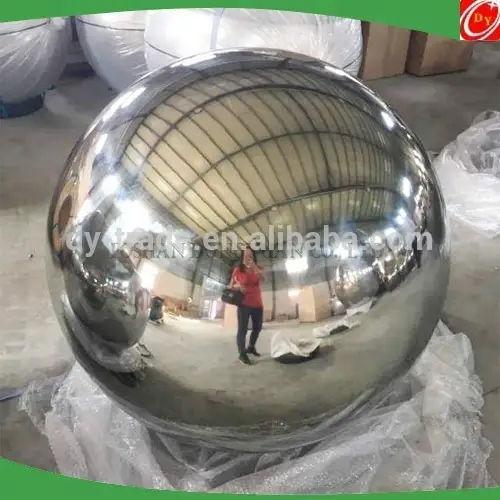

High-Gloss polished Stainless Steel Hollow Sphere
TEM NAME: High-gloss Polished Stainless Steel Hollow Sphere | |
SIZE: 500 mm/About 20 Inch | |
THICKNESS: 0.8 mm-1.5 mm | |
FINISH: Mirror Polished, Sandblasted, Painted and Plated etc. | |
MATERIAL: Antirust AISI304 | |
APPLIED PROCESSES: Cutting, Welding and Polishing | |
TOOLS: welding guns and polishing machines | |
PACKING METHOD: Customized wooden case, EPE & cushion on the bottom (depending on means of transport). Pallet is included for large and heavy items. | |
Use: 1. Indoor/Outdoor Decoration for garden, school, park, hotel, shopping mall, store, tourism attraction; 2. Handrail Fittings for construction projects; 3. Lampshades/Lamp Covers; 4. Floating Steel Ball. | |
Finish: 1. Mirror gazing polished; 2. Matt; 3. Sandblasted; 4. Rolled polished; 5. Raw surface; 6. Colored. | Feature: 1. Rolling Chrome Finish 2. Standard Polished 3. Matt Finish 4. Drilled-Hole Polished 5. Threaded-Hole Polished 6. Flat Black Painted 7. Color-Painted/Plated |
PACKAGES
Outside Packing:
Thick and standard wooden case with metal junction and nails. Pallet on the bottom.
Inside Packing:
Shake&Shock Proof.
Thick plastic or soft shockproof foam to avoid scratches on the surface of the product;
Cushioning tire on the bottom to prevent the item moving or tumbling or leaving dents on the product in case of rough transport.
SHIPPING
Modes of Shipment
Ground, Ship and Air
Q: Do you have a stainless steel ball of 250mm?
A: As for those standard sizes, we always have stock.
Q: Do you have a 1000mm ball ? How long can I get it?
A: This ball falls into a category of big size sphere, so it takes some time in manfuacturing and delivery.But rest assured you could get it as soon as possible.
Q: Can I have a stainless sphere not of regular sizes?
A: Sizes not of standard are available bur it costs a fortune. Hence, it is not recommended by us. We could always provide you with sizes simlar without too many difference and modest money.
Corrosion Resistance: AISI 316 > 304 > 302.
Diameter: from 19mm to 2000mm, thickness from 0.3mm to 8mm
AISI 304 and AISI 302 are slightly magnetic and AISI 316 is non magnetic
gazing sainless steel spheres for decoration, ornament, mascot and bearing balls.
Name | Brand | C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N |
|
304 | 0Cr1 8Ni9 | <=0.07 | 17.00 -19.00 | 8.00 -10.00 | <=2.00 | <=0.035 | <= 0.030 | - | <=1.00 | - | - |
|
201 | 1Cr17 Mn6Ni5N | <=0.15 | 16.00 -18.00 | 3.50 -5.50 | 5.50-7.50 | <=0.060 | <= 0.030 | - | <=1.00 | - | <= 0.25 |
|
316 | 0Cr17 Ni12Mo2 | <=0.08 | 16.00 -18.50 | 10.00 -14.00 | <=2.00 | <=0.035 | <= 0.030 | 2.00 -3.00 | <=1.00 | - | - |
|
| 1Cr189 Ni12Mo2Ti6 | <=0.12 | 16.00 -19.0 | 11.00 -1400 | <=2.00 | <=0.035 | <= 0.030 | 1.80 -2.50 | <=1.00 | - | - | Ti5(C%-0.02)~ 0.08 |
| 0Cr18N i12Mo2Ti | <=0.08 | 16.00 -19.0 | 11.00 -1400 | <=2.00 | <=0.035 | <= 0.030 | 1.80 -2.50 | 1.80-2.50 | - | - | Ti5C%- 0.70 |
