Better Touch Better Business
Our company is located in Foshan, Guangdong in mainland China and have been intending for providing all kinds of products, covering from stainless steel, stainless steel balls to related accessories, for our customers worldwide.Our products have been favored by many customers and companies throughout the world for years. Having acquired the name of your company, we regard you as a strong and also strongly favored one on your local market. In the future, we hope that we could collaborate and cooperate, and utilize strengths on both parts in the hope of further interest.

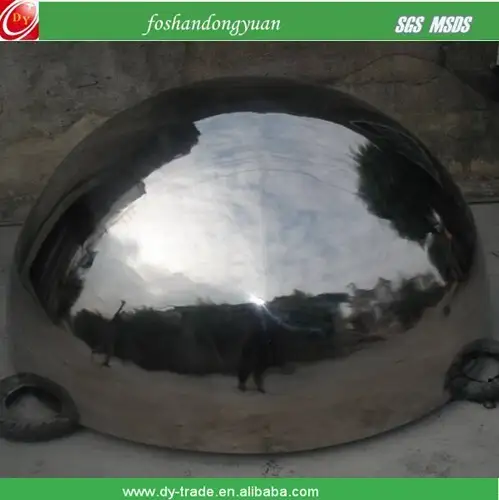

Q: Do you have a half stainless steel sphere of 400mm?
A: As for those standard sizes, we always have stock.
Q: Do you have a 1000mm half stainless steel sphere ? How long can I get it?
A: This ball falls into a category of big size sphere, so it takes some time in manufacturing and delivery.But rest assured you could get it as soon as possible.
Q: Can I have a stainless sphere not of regular sizes?
A: Sizes not of standard are available bur it costs a fortune. Hence, it is not recommended by us. With modest money, we could always provide you with sizes sim lar without too many differences and the quality remains unchanged.
Composition ranges for 304 grade stainless steel
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
304 | min. max. | - 0.08 | - 2.0 | - 0.75 | - 0.045 | - 0.030 | 18.0 20.0 | - | 8.0 10.5 | - 0.10 |
Mechanical properties of 304 grade stainless steel
Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
Rockwell B (HR B) max | Brinell (HB) max | ||||
304 | 515 | 205 | 40 | 92 | 201 |
Physical properties of 304 grade stainless steel in the annealed condition
Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C (J/kg.K) | Electrical Resistivity (nΩ.m) | |||
0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
304/L/H | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Grade specifications for 304 grade stainless steel
Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
BS | En | No | Name | ||||
304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Dual Certification
It is common for 304 and 304L to be stocked in "Dual Certified" form, particularly in plate and pipe. These items have chemical and mechanical properties complying with both 304 and 304L specifications. Such dual certified product does not meet 304H specifications and may be unacceptable for high temperature applications.
Applications
Typical applications include:
Food processing equipment, particularly in beer brewing, milk processing & wine making.
Kitchen benches, sinks, troughs, equipment and appliances
Architectural panelling, railings & trim
Chemical containers, including for transport
Heat Exchangers
Woven or welded screens for mining, quarrying & water filtration
Threaded fasteners
Springs
