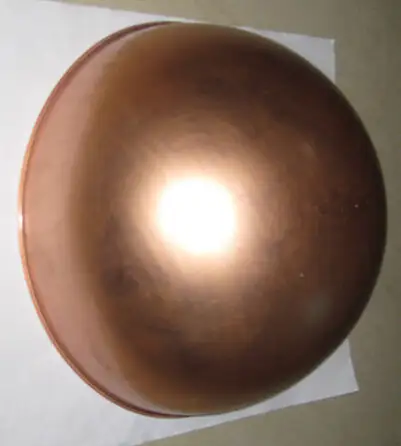

Brass Copper Aluminum Metal Hollow Hemisphere

Brass Copper Aluminum Metal Hollow Hemisphere

Brass Copper Aluminum Metal Hollow Hemisphere

Brass Copper Aluminum Metal Hollow Hemisphere



FAQ



What is your lead time?



-- Our general lead time is 10-15 days but may extend during peak periods.





Is a deposit required?



--It depends on the price of the purchase. If it is over 10,000 o, then a deposit of 50% of the total sum is required in advance, and the rest could be paid before the products are finished.





If I re-size your designs, is there a price change?



--In most cases, varying the design will result in minimal variations in price. Customising would mean the cost of creating a new template, changes in laser cutting time, and re-formatting our machines usually contributes to a re-size fee.





Product Description
 COPPER&BRASS

Copper is the perfect conduit for heat and electricity, though balls or spheres made of copper are not recommended to the occasions or situations where they are exposed to corrosive liquids or appliances under high stress. These balls or spheres are , however, soft and sensitive to corrosion from various materials.

Copper balls or spheres of Foshan Dongyuan Company range from 6mm to 300mm, with 0.8mm in thickness. The most sought-for coppers fall under the category of accessories of clothings, footwear and jewelry. They are also of excellent quality and superb craftmanship. Welding is employed in the copper balls without a noticeable seam and could also be applied in many ways. And we believe they could also be employed for many fruitful uses.

Our copper balls come with no holes but could be customer-orientated, that is to say, we could add a hole or holes to your balls as you want. Drilling with small holes is free of charge and please rest assured that everything of the copper balls will come out as perfect as possible.



Copper is a reddish coloured metal which is malleable and ductile. It has excellent thermal and electrical conductivities and good corrosion resistance. It is found in sulphide ores and as carbonate, arsenide and chloride (abundance in the Earth's crust is 50 ppm). Extraction of the metal involves roasting the ore to produce the oxide, followed by reduction and purification by electrolysis. The element is inert to non-oxidising acids but reacts with oxidising agents. In air, it will weather to produce the characteristic green patina of the carbonate. Copper will combine with oxygen on heating to produce CuO at red heat, and Cu2O at elevated temperatures.

Pure copper has an electrical conductivity second only to that of silver and hence its main application is in the electrical industry. Copper is also the basis of many important alloys (e.g. brass, bronze and aluminium bronze) and has been traditionally considered to be one of the coinage metals, along with silver and gold, but being more common, is the least valued. It is one of the first metals ever to have been worked by man and is thought to have been mined for more than 5000 years.







Class

Copper (%)

Zinc (%)

Notes

Alpha brasses

>65

<35

Alpha brasses are malleable, can be worked cold, and are used in pressing, forging, or similar applications. They contain only one phase, with face-centered cubic crystal structure.

Alpha-beta brasses

55–65

35–45

Also called duplex brasses. Suited for hot working. It contains both α and β' phase; the β'-phase is body-centered cubic and is harder and stronger than α. Alpha-beta brasses are usually worked hot.

Beta brasses

50–55

45–50

Can only be worked hot, and are harder, stronger, and suitable for casting.

White brass

<50

>50

Too brittle for general use. The term may also refer to certain types of nickel silver alloys as well as Cu-Zn-Sn alloys with high proportions (typically 40%+) of tin and/or zinc, as well as predominantly zinc casting alloys with copper additive.



<

Fabrication Properties
Joining TechniqueSuitability
SolderingExcellent
BrazingExcellent
Oxyacetylene WeldingGood
Gas Shielded Arc WeldingGood
Coated Metal Arc WeldingNot Recommended
Spot WeldFair
Seam WeldNot Recommended
Butt WeldGood
Capacity for Being Cold WorkedExcellent
Capacity for Being Hot FormedFair
Machinability Rating30



ASTM B134-52 Alloy 7 brass



hemical Analysis:
Copper............................................68.5% to 78.5%
Lead.................................................0.07% maximum
Iron...................................................0.05% maximum
Zinc..................................................Balance



Mechanical Properties
Hardness as measured on parallel flat surfaces is Rockwell “B” 75 to 85.
Tensile Strength............................80,000 psi
Yield Strength................................57,000 psi
Elongation in two inches.............20%
Reduction in area.........................85%
Modulus of elasticity....................15,000,000 psi
Density...........................................0.306 lbs./cu. in.



Brass balls provide excellent resistance to corrosion by water. Brass has the ability to resist the corrosive effects of fuel oil, gasoline, butane, dry carbon dioxide, benzene, lime-sulphur mixture and similar chemical agents.





 ALUMINUM

 <

1100 H16 ALUMINUM BALLS
1100 H16 ALUMINUM BALLS are primarily used in the Stud Welding Industry as fasteners.
SIZE RANGE 0.50mm (.020") up to 1-1/4"
GRADES 200, 500, 1000, 2000

CHEMICAL COMPOSTION
COPPER .05%-.20% MAX.
MAGNESIUM
MANGANESE .05% MAX.
SILICON
IRON
ZINC
ALUMINUM BALANCE

PHYSICAL CHARACTERISTICS
EXCELLENT WELDING CAPABILITIES NOT HARDENABLE

GENERAL USAGE
STUD WELDING (AUTOMOTIVE, CONSTRUCTION & INDUSTRIAL)
2017-T4 ALUMINUM BALLS
2017-T4 ALUMINUM BALLS are used in Automotive and Aircraft Applications, where durability, hardness & weight are factors.
SIZE RANGE 0.50mm (.020") up to 1-1/4"
GRADES 200, 500, 1000, 2000

CHEMICAL COMPOSTION
COPPER 3.5-4.5% MAX.
MAGNESIUM .40%-.80% MAX.
MANGANESE .4%-1.0% MAX.
SILICON .20%-.80% MAX.
IRON .7% MAX.
ZINC .25% MAX.
ALUMINUM BALANCE

PHYSICAL CHARACTERISTICS
HARDNESS .20-.80
GOOD DURABILITY,HARDNESS & WEIGHT

GENERAL USAGE
AIRCRAFT APPLICATIONS AUTOMOTIVE APPLICATIONS











Packaging & Shipping

 Corrugated carton, opp bag and foam





Authenticity

Certificate





Showroom

Wild range of selection of various sizes and materials







This material will help decrease the risk of infection or allergic reactions to limit the occurrence of mites and bacteria. The size of small-sized stainless steel ball is 6mm-30mm. Using this product means less human error. It can perform repetitive tasks and is less likely to make mistakes than an employee. The size of small-sized stainless steel ball is 6mm-30mm.
We, Foshan Dongyuan limited, were established in the year 2010 with the profound vision to offer our customers, best-in-class products and initiated supplying & trading a diverse array of Hemisphere/stainless steel bowl/basin sphere. These products find specific usage in several industrial applications and are widely cherished among our clientele. Under the extensive array of our offerings, we have brought forward Hemisphere/stainless steel bowl/basin sphere. Manufactured at our vendors’ facilities in accordance with the approved industry norms, these products are regarded for their significant features of dimensional accuracy, corrosion resistance and uniform finish. We have procured our offerings from certified names in the industry and make their delivery, in a convenient and timely manner.Our products offered are considered to be of top-notch quality, backed by our stringent procurement procedures. In our specified domain, we are backed by a vast warehousing & packaging unit and team of experienced professionals, required for completing our business tasks in an effective manner. Our company’s policy is stringent and quality-centric and as a result, we offer our customers products as per their desired standards. We procure our products following strict business norms and thereby, assure our industry users fruitful business transactions, on account of choosing us as their sourcing firm. So, we are committed towards offering our clients, world-class products.
